Configure HEAVY – simply in 3 steps
White (White 005)
Colors
Choose from a color palette of 20 colors. We can also realize your individual special color on request.
Clicking on the color fields changes the case color.
Color deviations between screen display and original color are possible.
Info & Details
mass
Configuration
Material

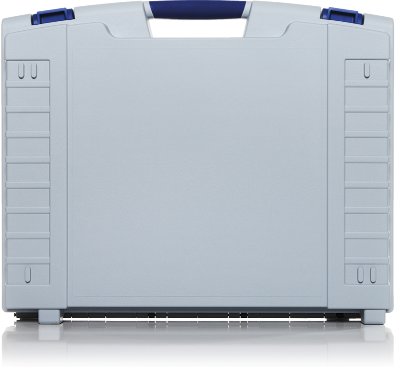

HEAVY – heavy duty for heavy duty tasks

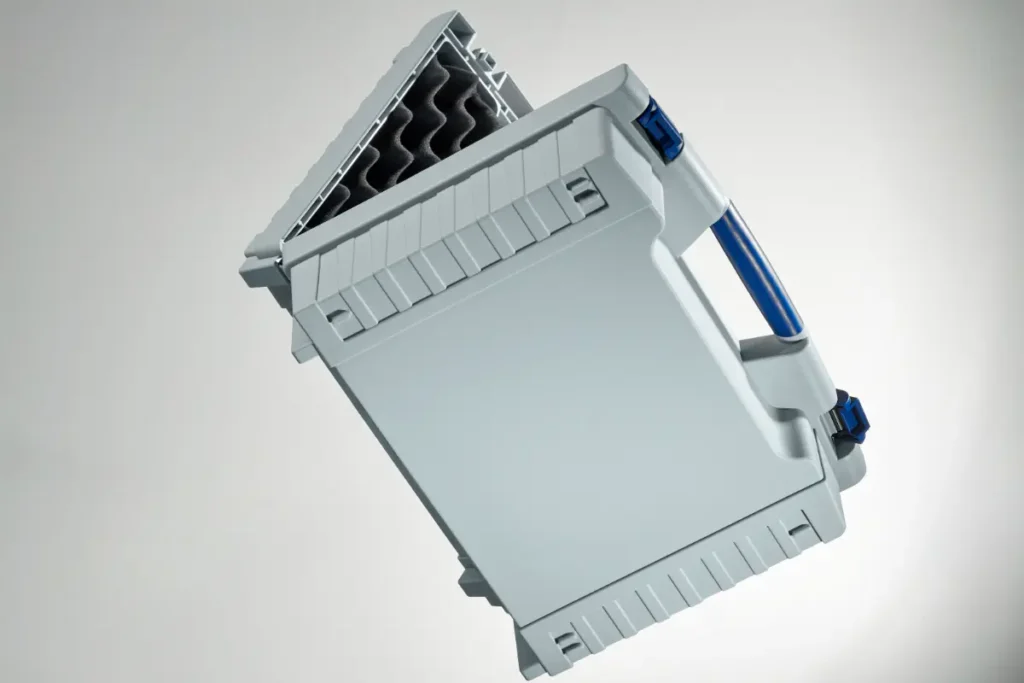

It’s easy with HEAVY! A modern design with robust shapes characterizes the HEAVY as a reliable and functional case. With an extra-large usable volume, even large, heavy products are optimally protected. The all-round sandwich construction ensures reliable stability. Useful features such as the trolley system and an intermediate plate make the HEAVY a versatile case and transport solution. Choose your individual HEAVY case from the 13 case sizes we offer.
HEAVY – The robust heavy-duty case for heavy everyday tasks
Rubber-soft soft-touch handle
Elegant and firm toggle fasteners
Maximum stability thanks to all-round, double-walled sandwich construction
Protected decoration area for screen printing and IML
Stacking cams for safe and stable stacking
Sturdy case hinges with robust quick-release axles
Pronounced adjustable feet for a secure stand
Dimensions / Article
External dimensions (WxHxD/mm)
Internal dimensions (WxHxD/mm)1
IML – Label size (WxH/mm)2
Screen printing (WxH/mm)3
Dig. direct print (WxH/mm)3
-
HEAVY 4001
306 x 273 x 82
275 x 195 x 69
177 x 184
140 x 140
–
-
HEAVY 4002
306 x 273 x 112 (41/71)
275 x 195 x 99 (34.5/64.5)
177 x 184
140 x 140
–
-
HEAVY 4003
306 x 273 x 142
275 x 195 x 129
177 x 184
140 x 140
–
-
HEAVY 4010
393 x 311 x 102
365 x 235 x 89
252 x 216
200 x 180
–
-
HEAVY 4012
393 x 311 x 147 (51/96)
361 x 231 x 134 (44.5/89.5)
52 x 216
200 x 180
–
-
HEAVY 4014
393 x 311 x 192
361 x 231 x 179
252 x 216
200 x 180
–
-
HEAVY 4028
501 x 427 x 124
466 x 327 x 110
328 x 305
285 x 260
–
-
HEAVY 4032
01 x 427 x 175 (62/112.5)
459 x 320 x 160 (55/105)
OT: 328 x 305, UT: 336 x 299
285 x 260
–
-
HEAVY 4036
501 x 427 x 225
459 x 320 x 210
336 x 299
285 x 260
–
-
HEAVY 4040
575 x 474 x 146
539 x 378 x 130
355 x 355
285 x 300
–
-
HEAVY 4044
575 x 474 x 206 (73/133)
530 x 370 x 190 (65/125)
55 x 355
285 x 300
–
-
HEAVY 4048
575 x 474 x 266
530 x 370 x 250
355 x 355
285 x 300
–
-
HEAVY 4054
660 x 562 x 246
612 x 432 x 220
–
330 x 320
–
1) Undersize / base plate
2) Plus 3 mm surrounding edge
3) Maximum printable area
OT = upper part, UT = lower part
Added value through optional accessories
Here, W.AG Funktion + Design offers clever features that can be used optionally
with selected case sizes.
Pocket solutions
Thermoformed insoles
Three ways to use materials sustainably
For all W.AG products, you can choose between
three materials and philosophies.
This product line is not only a response to current ecological challenges, but also a clear sign of the desire to preserve the planet for future generations.
Learn more
